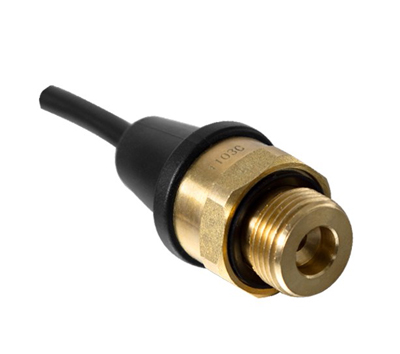

Home appliances pressure transducer

Home appliances pressure transducer

1. Feature

● Ceramic piezo-resistive sensing element
● Measuring range: 0...5～50bar (Gauge)
● Accuracy: 0.5 %F.S
● Output: 4 ... 20 mA
● Electrical connection: DIN43650C、M12
● Pressure connection: G1/4、NPT1/4、G1/2
● High accuracy and high cost performance
● Suitable for mass production



2.Application

● General pressure measurement
● Machinery manufacturing
● Measurement and control technology
● Hydraulic and pneumatic technology
● Pumps and compressors



3. Specification:

Pressure range 0~30Mpa
Over load 150%F.S
Burst pressure 300%F.S
Output 4-20mA, 1-5V/0-5V, 0-10V
Power supply 10~30VDC
Response time <5ms
Combine error 0.5% FSO (Including Linearity, Repeatability & Hysteresis)
Repeatability ≤ +/- 0.2%FSO
Long term stability ≤ +/-0.2%FS/year
Pressure connection M20×1.5,G1/2,G1/4,1/2NPT （ customer tailor ）
Operating temperature

 ±0.5%±FS(0～80°C)

±1.5%FS(-20～100°C)

±3%FS(-40～125°C)
Temperature compensation 0℃ ～ 60℃
Electrical connector Bendix connector,Hirschman DIN4365 and Gland lead
